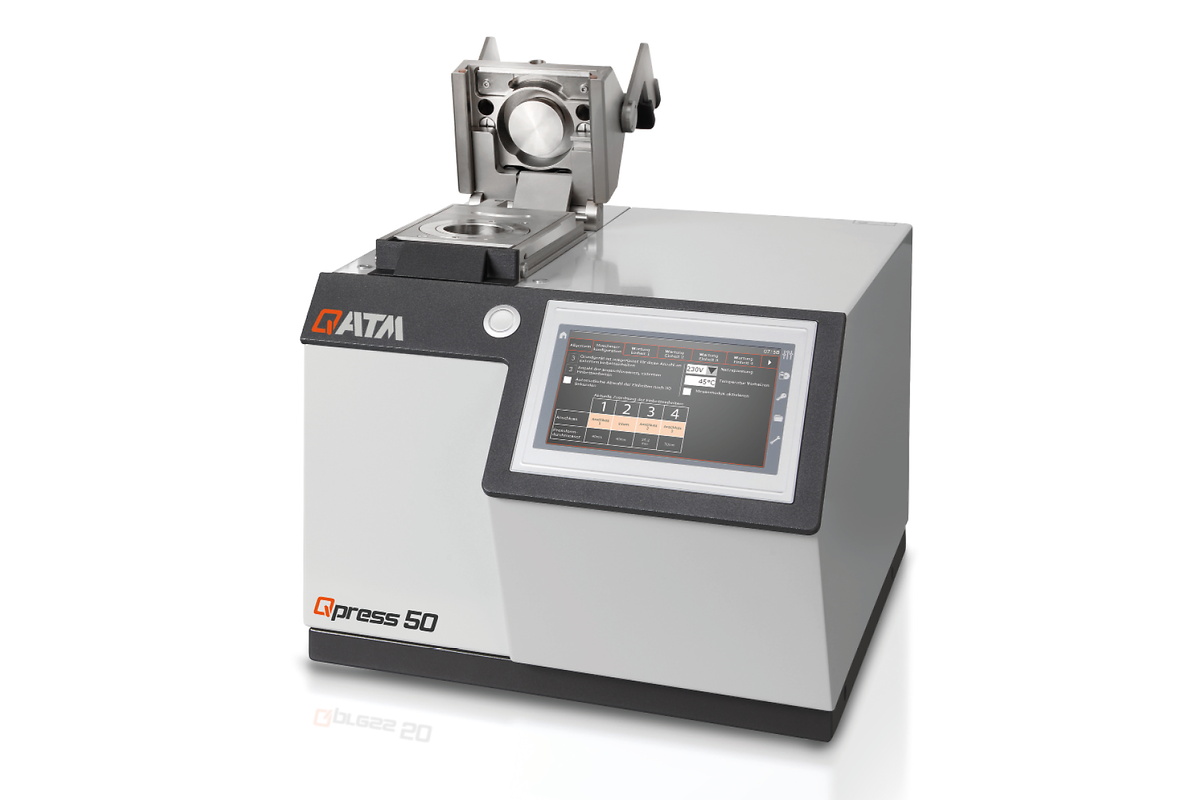

Hete montage pers Qpress 50

The Qpress 50 is a modular hot mounting press for fast and simultaneously independent mounting of different materialographic specimens. Due to its modularity the Qpress 50 can be configured ideally to the specific customer’s needs; e.g. the specimens can differ in size and material.

The 7“ touch screen with intuitive software contains user account management, preinstalled recipes and user-defined maintenance tasks and more. The device combines fast mounting and high energy efficiency in a robust powder-coated steel case.

Productvoordelen

7” touch screen user interface with intuitive QATM user software
Sliding closure with comfortable one-hand operation
Dust Guard removes fine dust to improve safety
Fast mounting
High modularity for both simultaneous and independently controlled mounting
User account management with different access rights
Pre-installed preparation methods and consumables
Powder coated steel housing

Klik om video te bekijken

Hete montage pers Qpress 50 Kenmerken

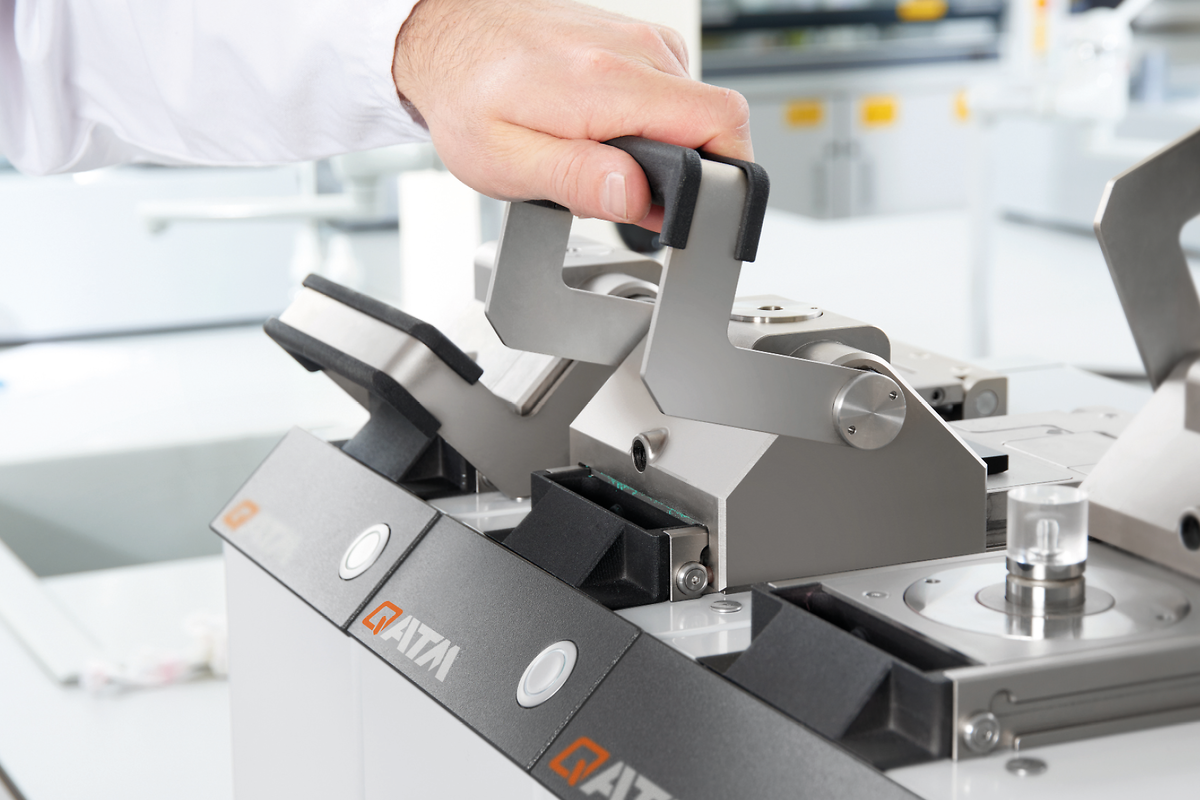

Improved sliding closure

One-hand sliding closure with integrated suction nozzle. When the mold is closed, excess granulate is pushed into a removable compartment (dirt trap). The sliding closure can be lifted off to clean the upper flask.

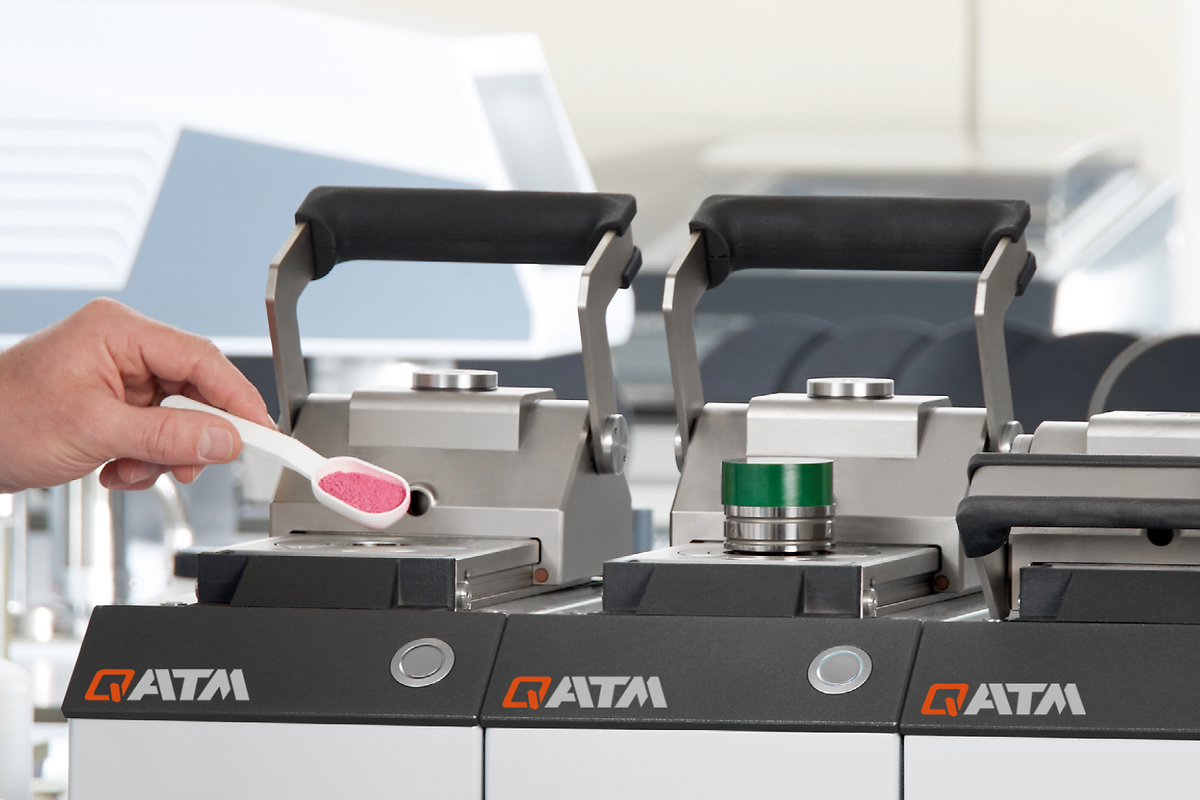

User safety

An integrated exhaust device (Dust Guard) protects the operator from inhaling expired fine dust during filling the moulds with mounting resin.

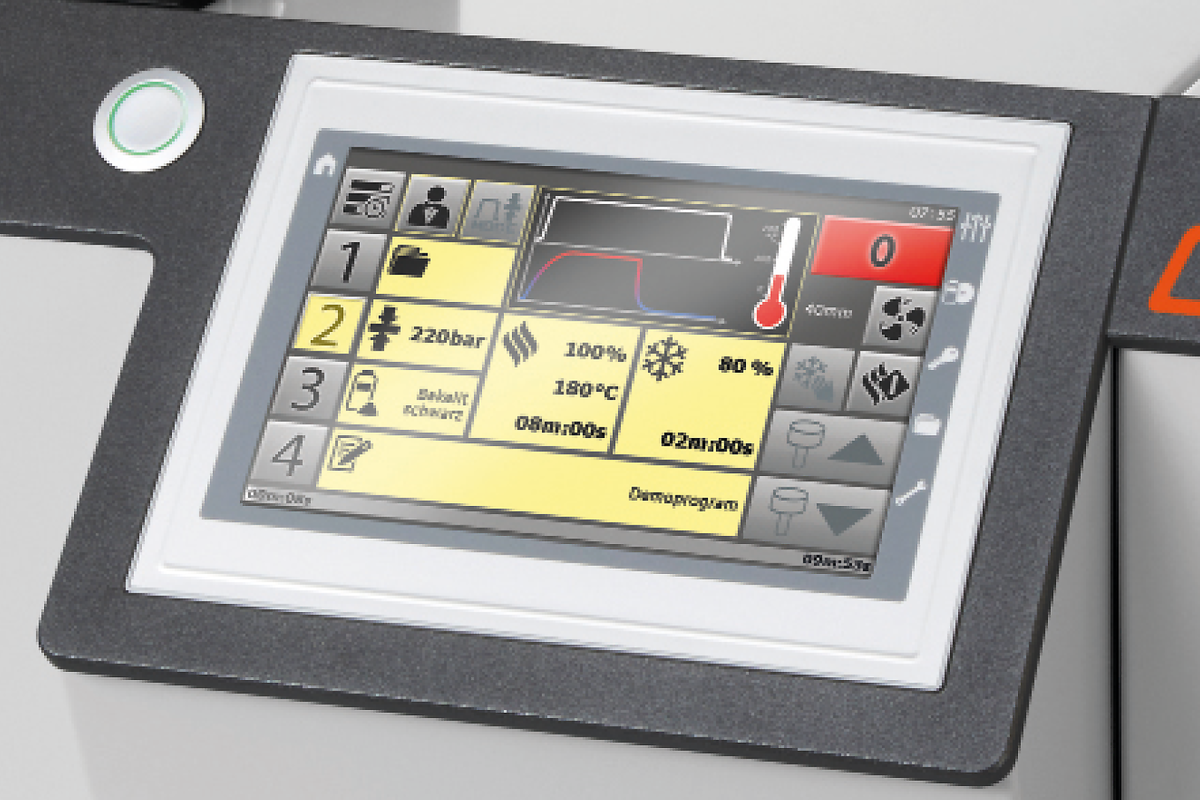

Easy to operate

The multi-functional button indicates the selected mounting unit, the operation state of the pressing unit and facilitates the operation of the whole unit. The 7“ touch display with control software consists of pre-installed mounting methods, consumables and offers the storage of more than 200 user-defined mounting methods.

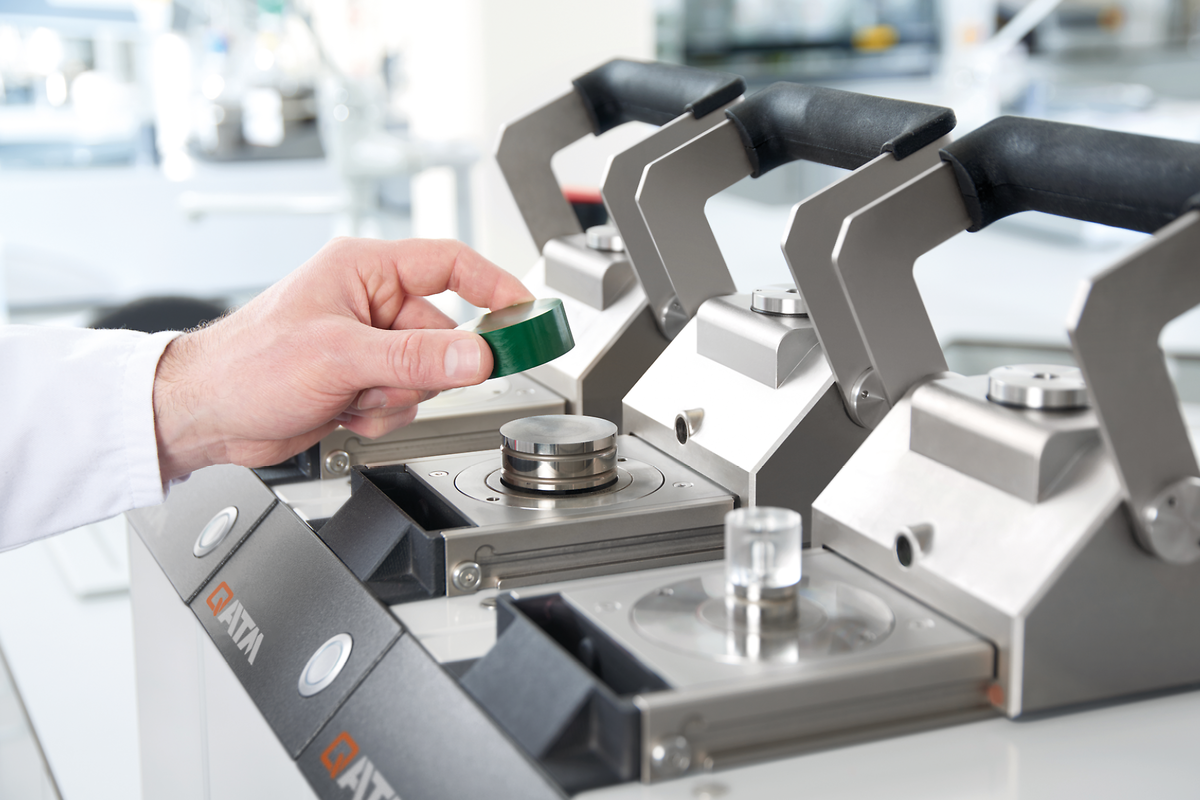

Fast mounting cycle

The Qpress 50 is designed for fast mounting including a pre-heat function and safes significantly time compared to other hot mounting presses.

Highlights

High modularity to meet specific customer needs
Dust Guard removes fine dust to improve safety
Innovative design of heating/cooling unit guarantees precise and energy-efficient mounting process
Basic unit supports all additional pressing units
Pre-heat function reduces cycle time
Adjustable cooling power and a choice of cooling modes reduce water consumption

For up to 4 mounts simultaneously Excellent modularity to meet your needs

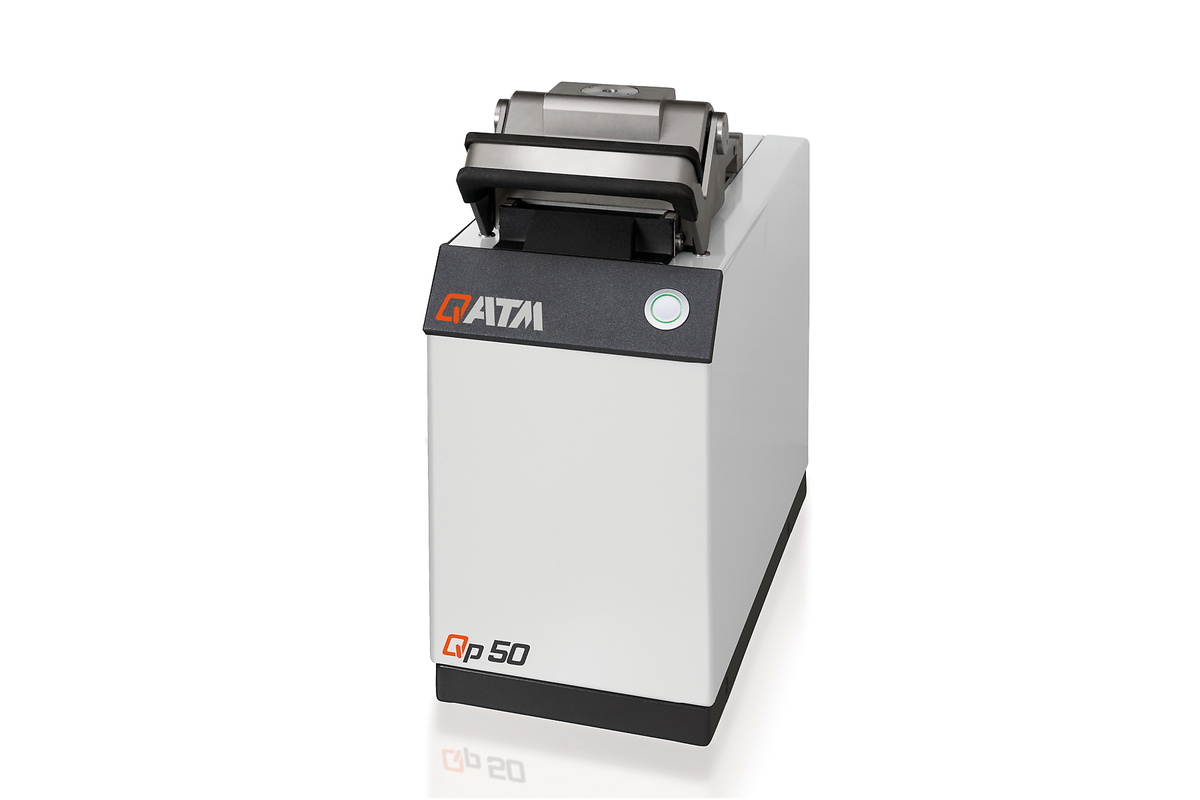

Qpress 50-2 - for medium quantity of mounts

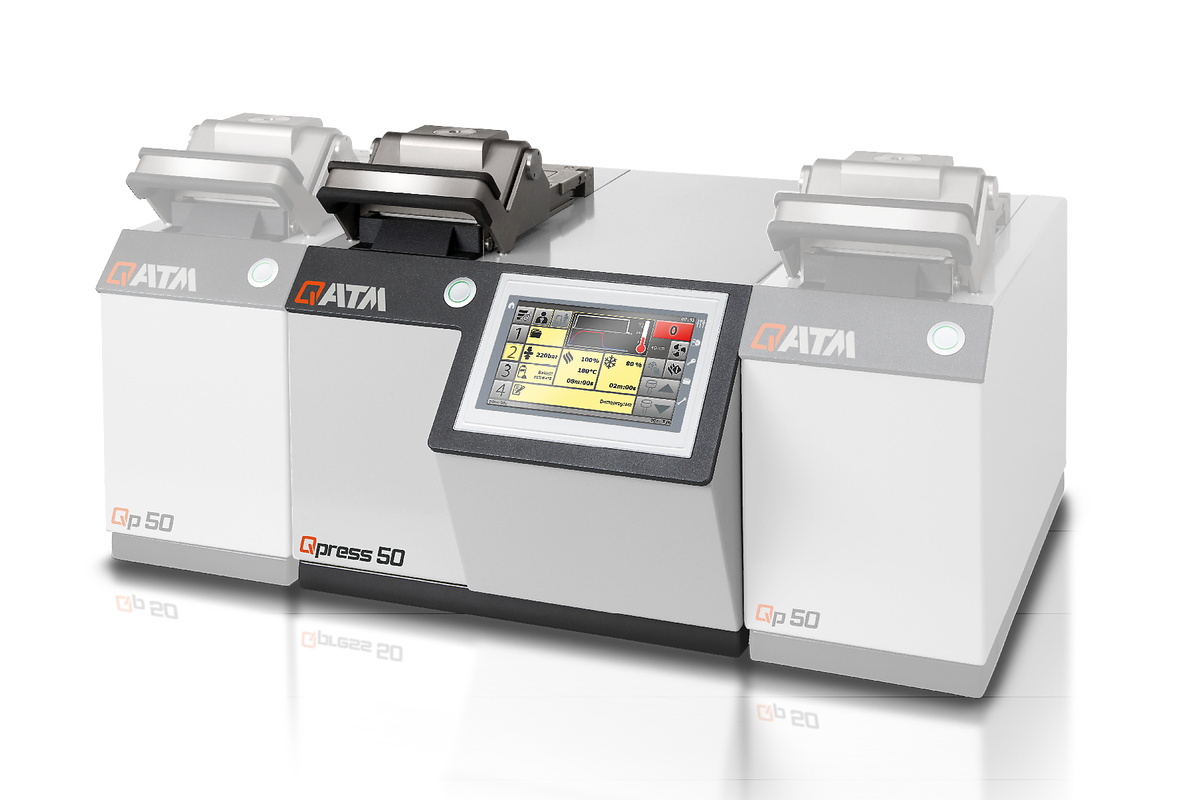

The Qpress 50-2 is the perfect choice for small and medium quantities of mounts. The basic unit includes one pressing unit and can be extended with one additional mounting unit at any time. The units are operated independently and simultaneously.

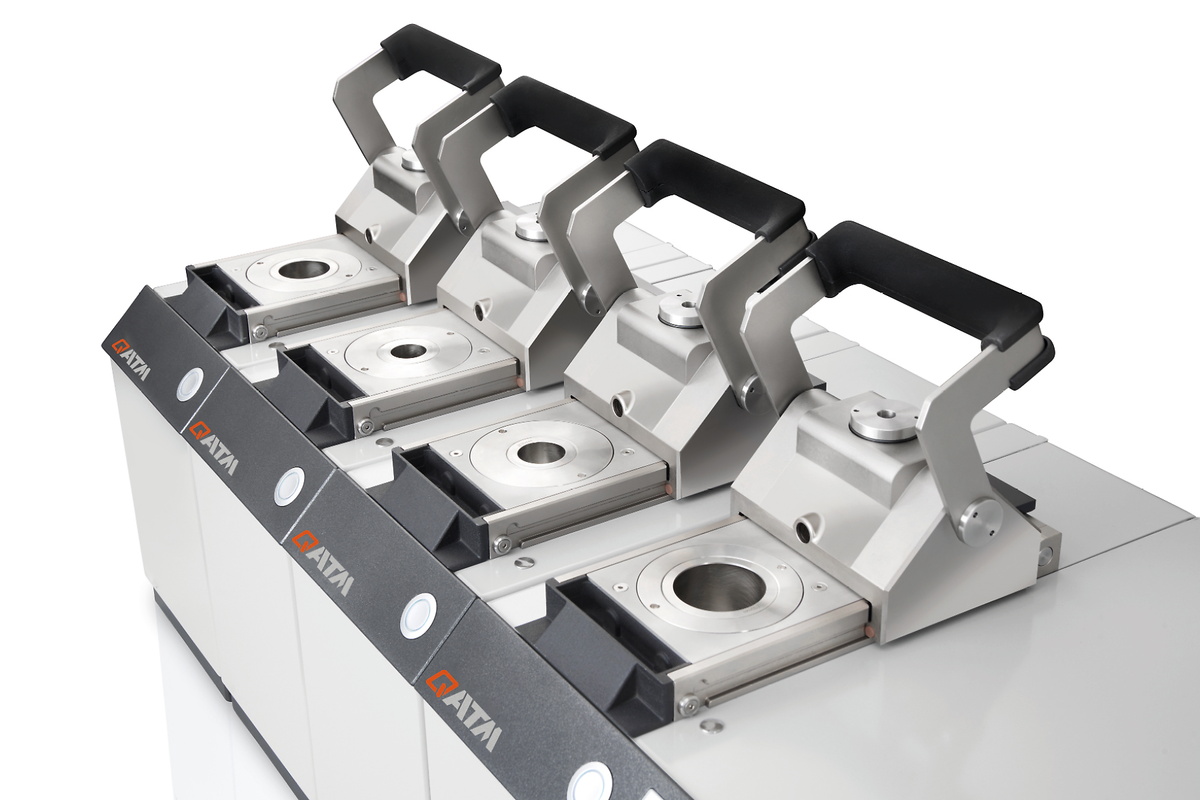

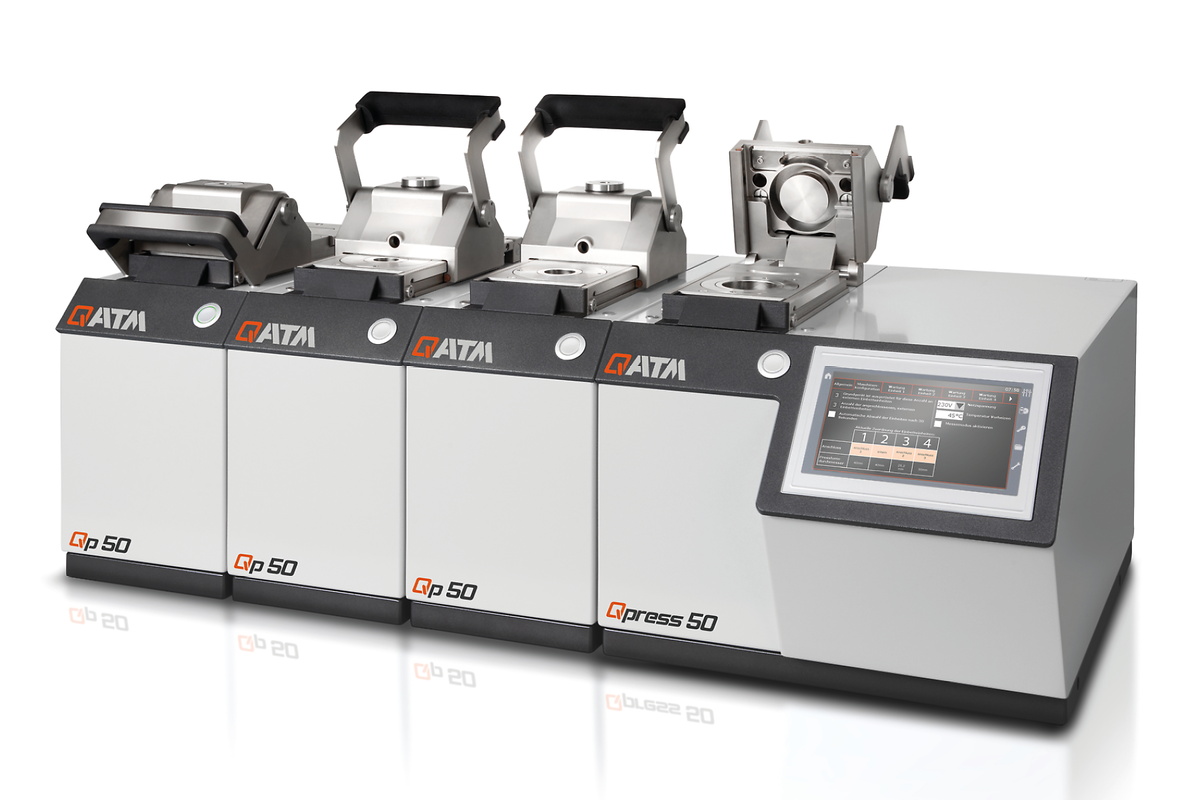

Qpress 50-4 - for large quantity of mounts

Up to 4 mounts can be done simultaneously and independently from each other. The basic unit includes one pressing unit and is extendable by 1, 2 or 3 additional mounting units. The diameter of the mount of each pressing unit is chosen individually by 25.2 mm, 30 mm, 1 ¼“ (~32 mm), 1 1/2“ (~38 mm), 40 mm and 50 mm - each diameter with or without chamfer.

Hete montage pers Qpress 50 Mounting in 4 easy steps

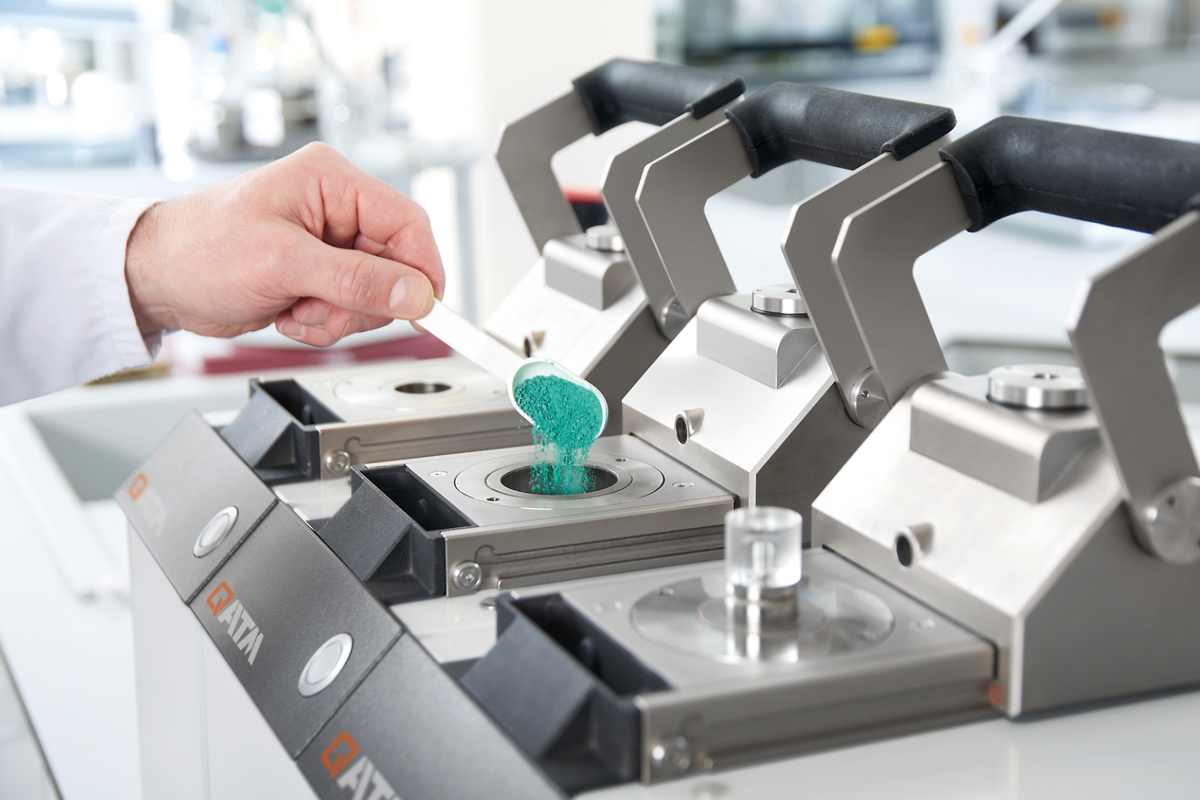

1. Fill the mould with the respective mounting material

2. Close the sliding closure by one-hand operation

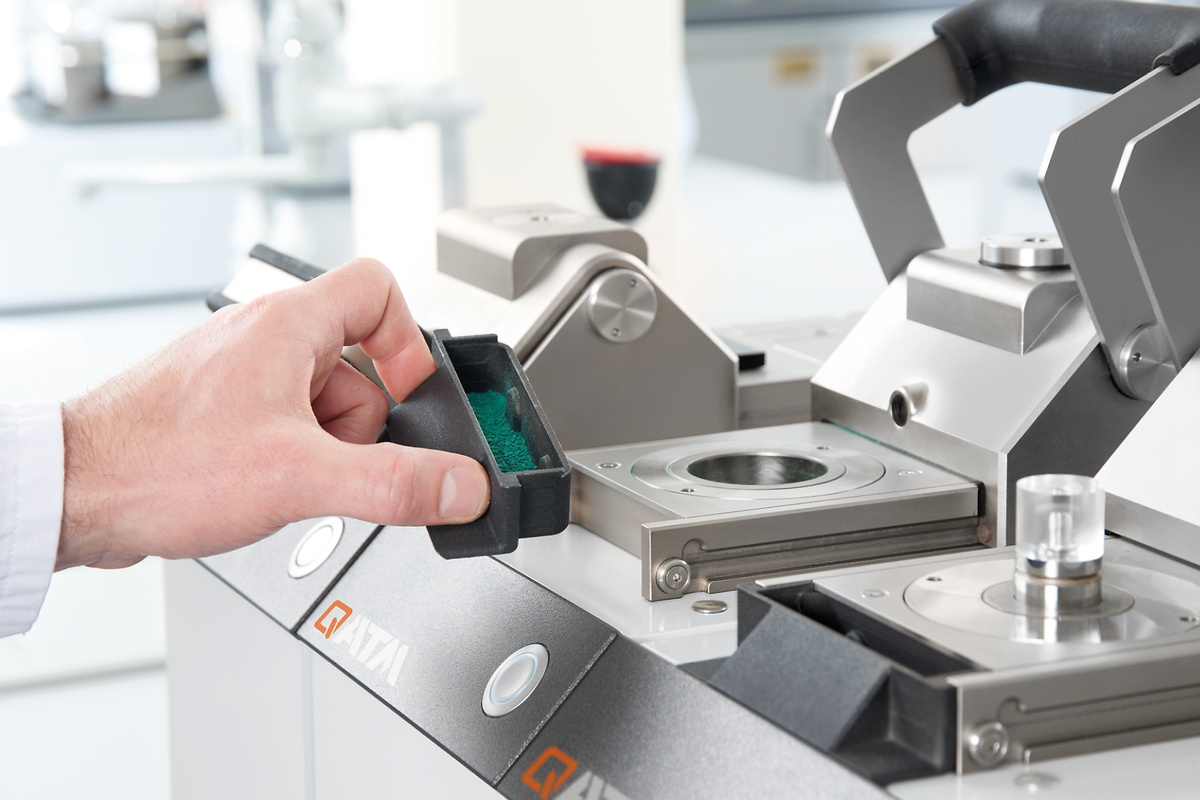

3. Clean dirt trap as excess mounting material is automatically pushed towards it

4. Start the mounting method with multifunctional button

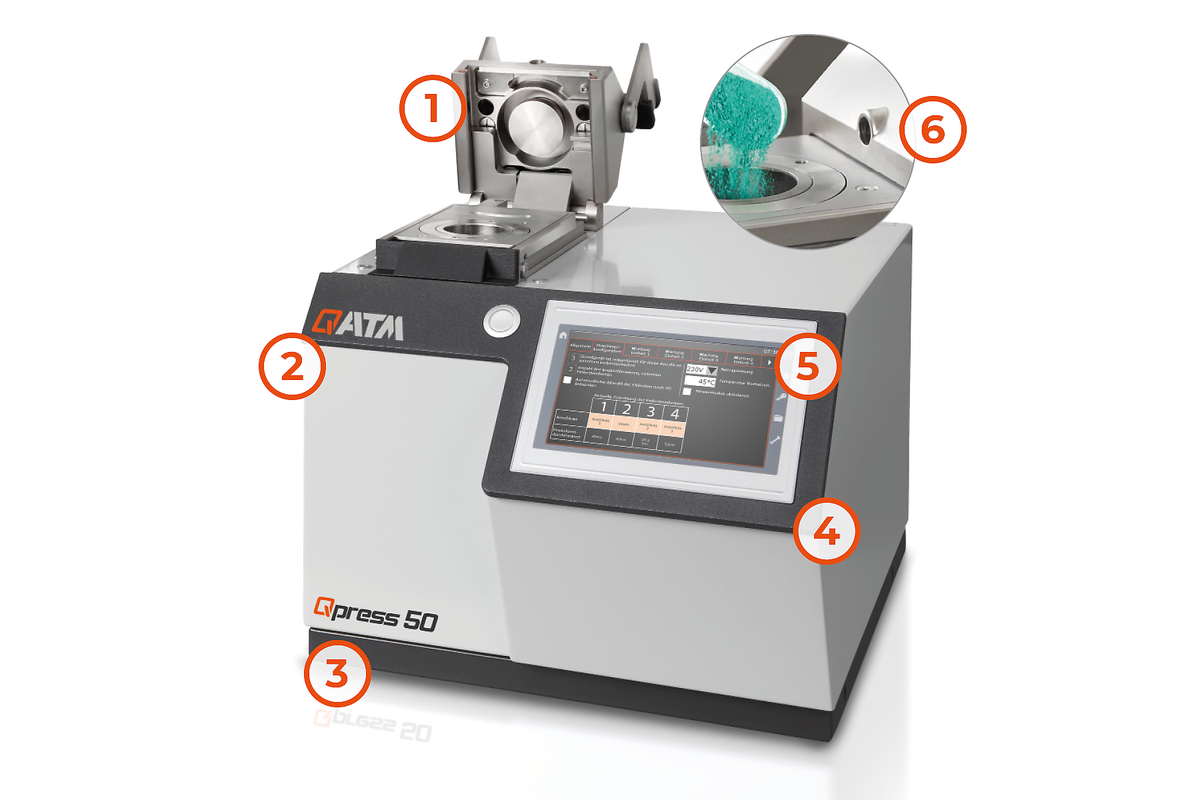

Clear, robust design made in Germany Superiority in detail

1. Sliding closure

One-hand operation
Innovative design
Safety closure under pressure
Easy to operate
Removable for cleaning upper ram
Includes dirt trap

2. Mounting

Fast mounting
4 different pressure modes
Highly precise temperature control
Adjustable heating/ cooling power

3. Modularity

Up to three different mount sizes
Simultaneous mounting
Independently controlled
Status indication by the multifunctional button

4. Control interface

7” color touch screen
Intuitive control software
Pre-installed preparation methods for QATM consumables
Smart control modularity
Assistance function for easy use of the additional pressing units

5. Pre-heat function

Pre-heating of mould
Reduces cycle time
Pre-heat temperature can be set manually

6. Dust Guard

Vacuums fine dust of mounting material
Integrated in design of sliding closure

Hete montage pers Qpress 50 Toebehoren

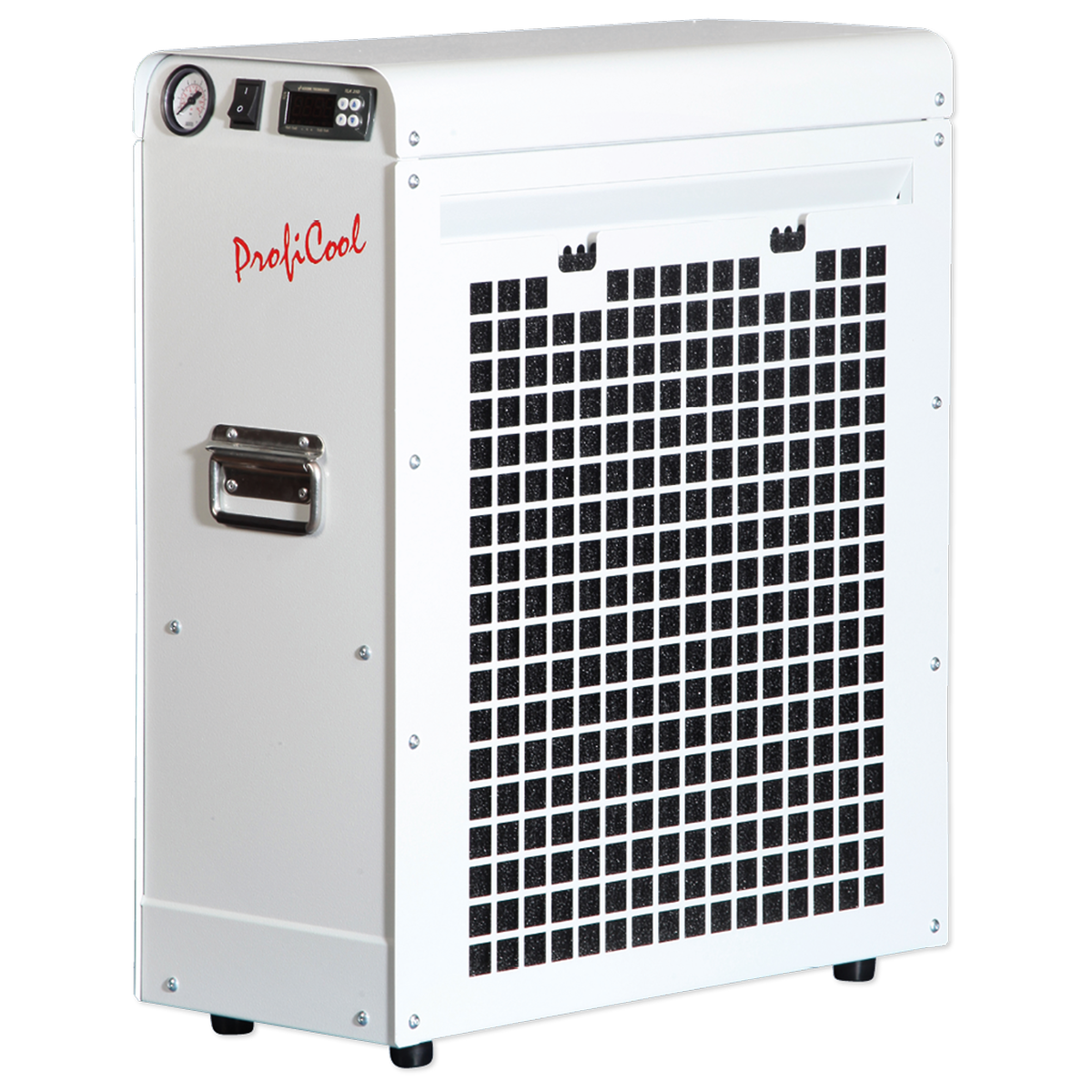

Recirculation cooling unit

Powerful cooling with adjustable water temperature
Resource-saving circulation system instead of fresh water
Low maintenance, as the coolant circulates in a closed circuit, thus reducing limescale deposits

Also available as system cooling with the following advantages:

Convenient mobile slide-in mechanism
Can be fully integrated into the QATM system laboratory (system drawer 21 HT)

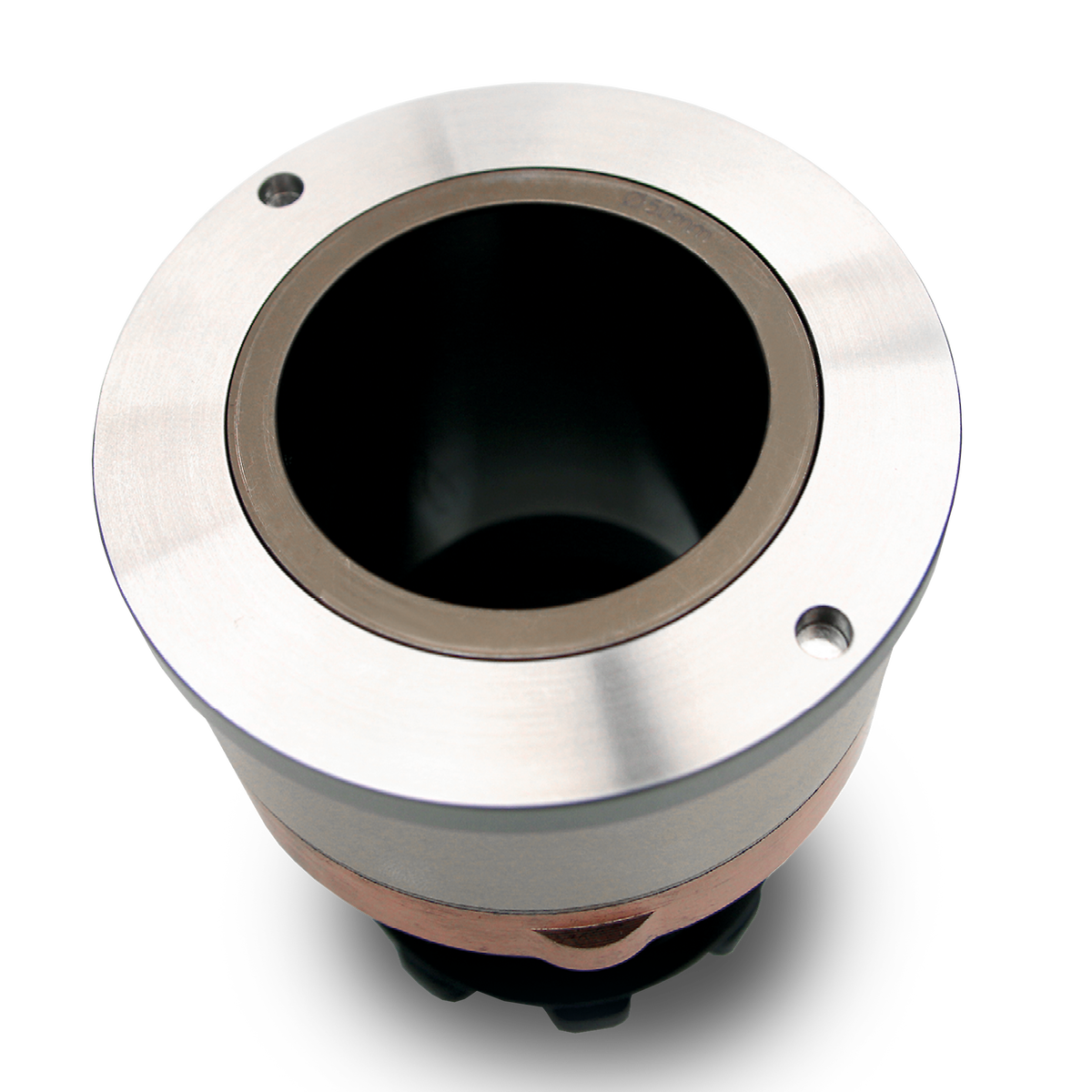

Mould assembly

Available with or without chamfer in these sizes:
Ø 25.2 mm, Ø 30 mm, Ø 1¼“ (~32 mm), Ø 1½“ (~38 mm), Ø 40 mm, Ø 50 mm

Perfect mounting – Consumables by QPREP

Inbedden is betrouwbaarder, veiliger en efficiënter als het met de juiste ingrediënten gebeurt: kennis, zorg en de juiste keuze van verbruiksmaterialen en instrumenten.

Naar het productenoverzicht

Hete montage pers Qpress 50 Technische Gegevens

Kenmerken

Max. aantal perseenheden	2/4 Qpress 50-2: tot 2 Qpress 50-4: tot 4
Pers cylinder	ø 25.2 - 50 mm (6 verschillende maten)
Sluitsysteem	schuifsluiting
Thermostaatbereik	20-200°C
Verwarmingstijd	instelbaar
Koeltijd	instelbaar
Max. druk in pers-cylinder afhankelijk van constructie-afmeting	250-350 bar
Verbindingsvermogen (basiseenheid)	1.6 kVA
Verbindingsvermogen (extra perseenheid)	1.5 kVA
verwarmingsvermogen	1200 W
B x H x D (basiseenheid)	402 x 382 x 563 mm
B x H x D (extra perseenheid)	187 x 382 x 449 mm
Gewicht	~ 50 kg

_{Onder voorbehoud van technische wijzigingen en eventuele fouten}
